SMART Visofold 1000 Slim Bifold Bead - Co Extruded

UN3160G Quick-Glaze Bead with Integrated Gasket 28/29mm Glazing

Genuine SMART Systems UN3160G Quick-Glaze bead featuring an integrated co-extruded gasket for quick and easy glazing without the need for a separate internal wedge gasket.

Designed for use across a range of SMART aluminium window and door systems, including Alitherm 400 and Visofold 1000 Slim, as well as various other compatible SMART profiles.

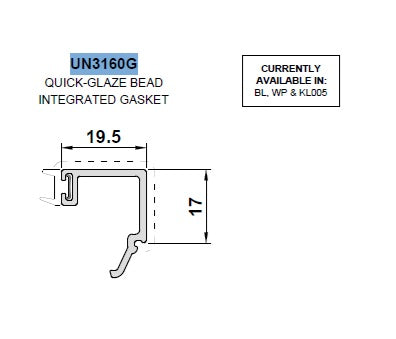

Profile dimensions: 19.5mm × 17mm
Product code: UN3160G
Type: Quick-Glaze bead with integrated gasket
Compatibility: SMART Systems aluminium windows and doors

Ideal for replacement, repair and maintenance work where the original UN3160G glazing bead has become damaged, lost or requires replacement.

Available in the following colours

Anthracite Grey 7016M

Black Matt 9005M

White Gloss (SMART KL009/SA18)

Please check the profile shape and dimensions against your existing bead before ordering, as SMART Systems use a number of different glazing bead profiles.

**Bead is supplied in 1000mm and 2100mm lengths - You will need to cut this bead down using a suitable saw. We can cut this down for you for an additional £9.99, please purchase the closest size and provide the actual cut size - Send us a message with your order number and we'll arrange to cut this to size for you**
